Name: Chrome Plated API 11AX High Pressure Pump Plunger AISI 1045 Steel
Brand: Zhongshi
Price: 1 USD

Brand Name : Zhongshi

Model Number : ZS

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 10000pcs/month

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Coating type : Chrome plated

Application : Pump parts

Standard or not : Yes

Material : AISI 1045 steel

Parts code : P

Standard : API 11AX

Contact Now

Chrome Plated Pump Plungers Oilfield Pump Parts

Chrome Plated Plungers Description

Pump plunger is a key part of the API sucker rod pump. It moves up and down in the pump to extract oil from the oilwell.

There are spray metal plunger and the chrome plated plunger

Technical Specifications

Model	Part No.	API code.	Describe
P21A	P21A-106(XX)-L	P21-106	Plunger, Pin End, One Piece
	P21A-125(XX)-L	P21-125
	P21A-150(XX)-L	P21-150
	P21A-175(XX)-L	P21-175
	P21A-200(XX)-L	P21-200
	P21A-225(XX)-L	P21-225
	P21A-250(XX)-L	P21-250
P21I	P21I-106(XX)-L	P21-106	Plunger, Pin End, One Piece, inclined plane
	P21I-125(XX)-L	P21-125
	P21I-150(XX)-L	P21-150
	P21I-175(XX)-L	P21-175
	P21I-200(XX)-L	P21-200
	P21I-225(XX)-L	P21-225
	P21I-250(XX)-L	P21-250
	P21I-275(XX)-L	P21-275
	P21I-325(XX)-L	—
	P21I-375(XX)-L	P21-375
P22	P22-125(XX)-L	P22-125	Plunger, Assembled
	P22-150(XX)-L	P22-150
	P22-175(XX)-L	P22-175
	P22-200(XX)-L	P22-200
	P22-225(XX)-L	P22-225
	P22-250(XX)-L	P22-250
	P22-275(XX)-L	P22-275
P23	P23-175(XX)-L	P23-175	Plunger, Box End
	P23-225(XX)-L	P23-225
	P23-275(XX)-L	P23-275
	P23-375(XX)-L	P23-375

Code explaination to the above:

1)“XX” represent Material identification symbol;

2)L represent standard strength for plunger;

3)The outer surface of the plunger can be processed with annular grooves based on the well conditions.

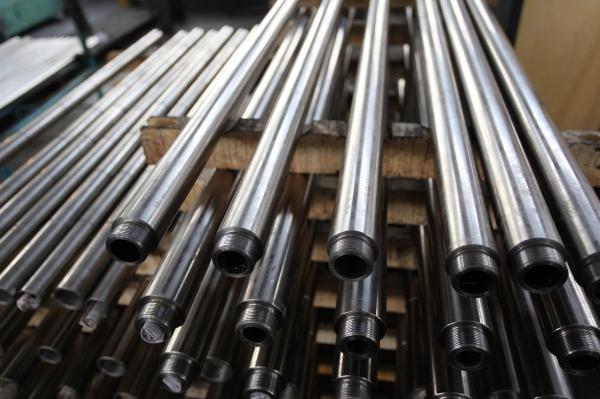

Photo:

Chrome Plated API 11AX High Pressure Pump Plunger AISI 1045 Steel
